Pemco

Spill Containment Manhole

Spill Containment Manhole

SKU 112 Category

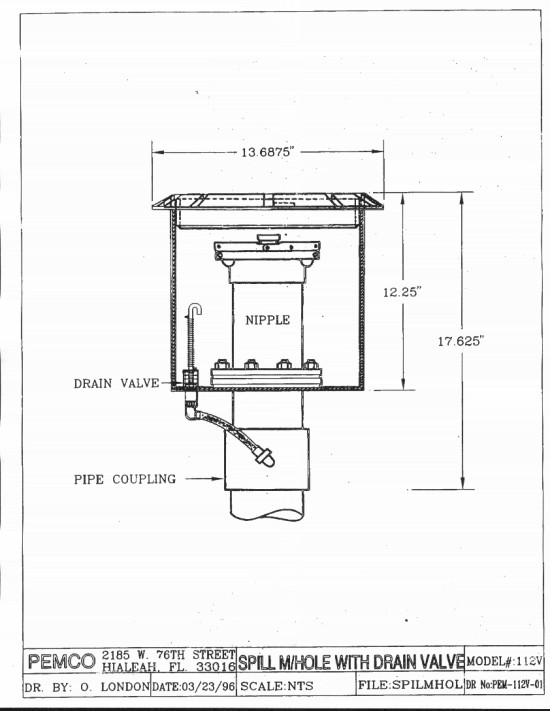

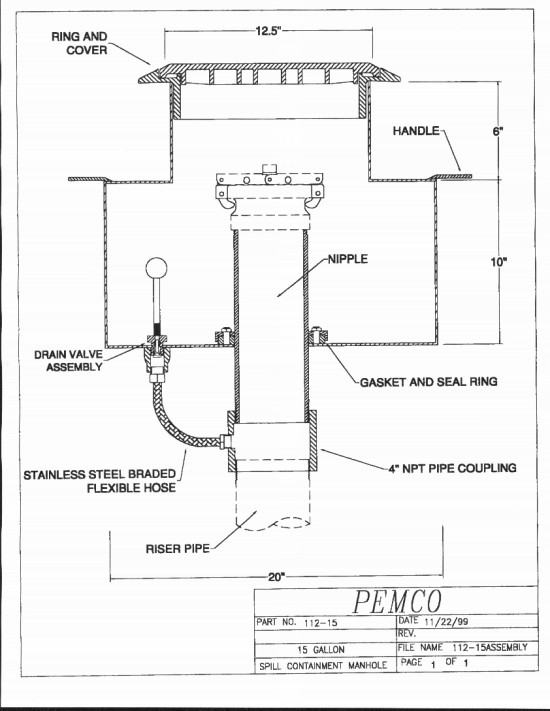

The Spill Containment Manhole is used to contain spillage during underground storage tank filling. The manhole is designed for easy slip on installation onto the fill riser and includes a flexible Buna-N seal and flange assembly to allow for frost heave or angular movement of the storage tank. The spill containment manhole also features a rust resistant epoxy coated steel body, a water shed style cast iron ring, a ductile iron cover with an exclusive twist lock design and carries the H-20 load rating. The Model 112 and Model 112P are ideal for retrofit application. The Model 112P includes a hand pump and Model 112V includes a drain valve. All models are available in 5, 10, 15 and 25 gallon capacities. The 15 and 25 gallon models also include two easy grip handles.

ModelHeightWidthWeight (lbs.)Capacity
112512½"15 3/850.05 Gallons
1121019½"15 3/854.010 Gallons
1121517½"24"78.015 Gallons
1122517½"28"124.025 Gallons
112P516½"15 3/855.05 Gallons
112P1021½" 15 3/859.010 Gallons
112P1519½"24"78.015 Gallons
112P2519½"28"125.025 Gallons
112V516¼"15 3/864.05 Gallons
112V1023½"15 3/868.010 Gallons
112V1521½"24"91.015 Gallons
112V2521½"28"138.025 Gallons
